Fixing noise in soft recordings

Hey, there!

One of my remote ProPlus clients, Lee (who is, by the way, absolutely killing it in DC, taking to VO like a duck to water – every month, he’s taking the video VO classes, sending in the work to me for review, we chat and he’s chugging right along) had a problem.

He sent me this month’s homework, and while I was listening, I noticed a lot of unwanted room noise in his recordings.

At first, I thought he might have the wrong mic selected in Audacity’s input device settings. It’s pretty common for that to be the case.

But he wrote back saying that everything was correct, and that things sounded good before he normalized his work, so…

And that was the clue for me.

I asked him to record a clip, and normalize it, saving both versions as MP3s for me to listen to.

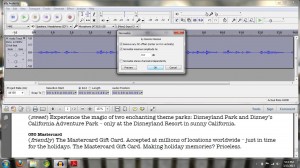

He did me one better: he took a screen shot of his normalization dialog:

Normalization Settings

(Click on it to see the full size screenshot.)

He had his normalization set to 0.0. I like that (I like -3.0 better) – but look at how small the waveforms are in the recording!

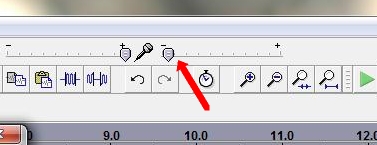

And you can see why: in the screen shot, you can also see the input level setting in the upper right hand corner – it’s at 1 out of 10, around 5-10% of full input volume:

Normalization Settings-zoom

That means a barely audible sound, and when normalized, the volume will be raised by 10-20 times, and all that room noise is going to be 10 to 20 times louder too.

And that was Lee’s problem.

The fix? Simple.

I had Lee increase the recording level to 40 or 50% of full input volume by sliding the control to the right to 4 out of 10:

Normalization Settings 2-zoom

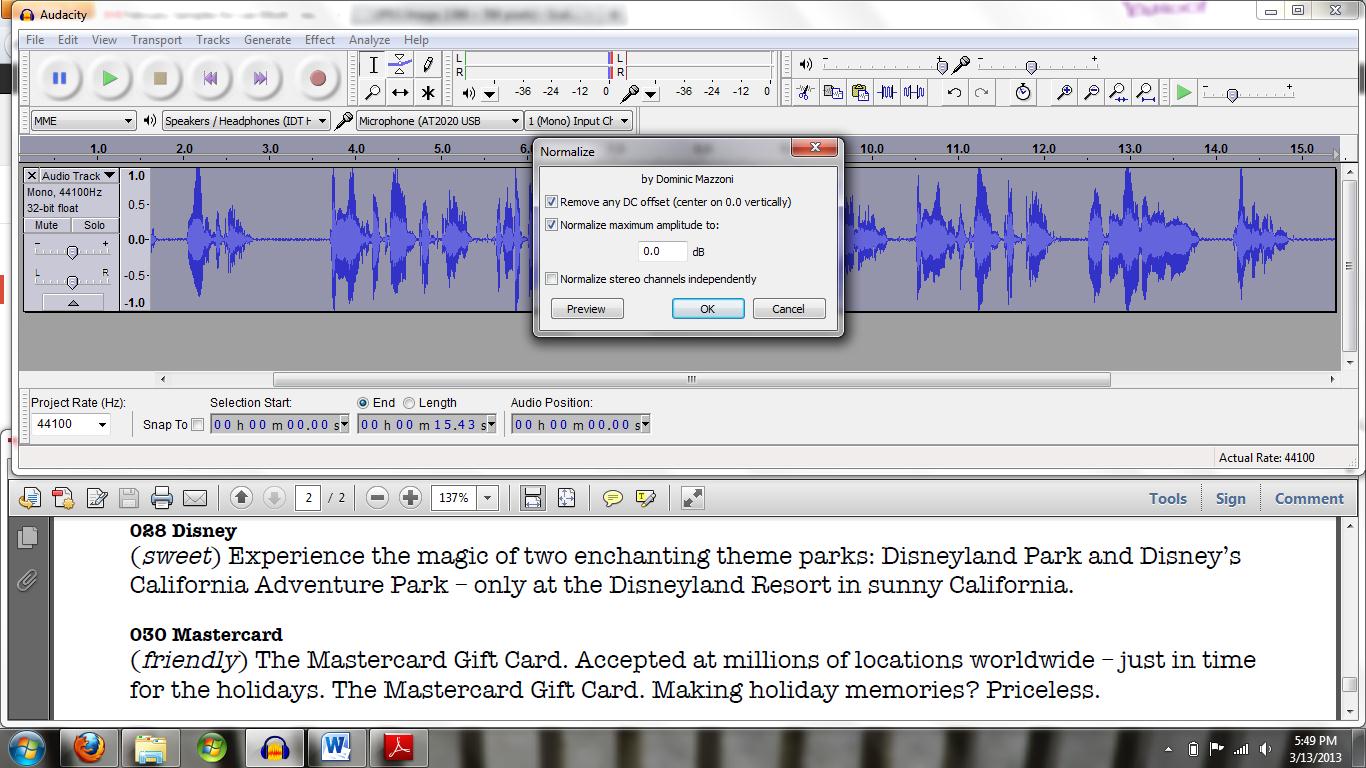

Room noise will stay the same, but when normalized to -3.0, the volume of the recording will be raised no more than a little bit, as will the room noise. And the difference was amazing. Lee took another screen shot after he’d made the change – and the sound was incredible:

Normalization Settings 2

(You can click on this one to make it bigger as well.)

Look how much bigger those waveforms are. That means they are much louder (without being distorted) – but the room noise is the same. And it won’t be increased all that much, if at all, when he normalizes the clip.

If that normalization is at -3.0 (which is a good habit to get into anyway, as that’s what ACX wants everything to be at), the noise floor will go down proportionally to the reduction in overall volume:

screen-shot-2016-10-23-at-12-51-12-pm

Here’s your takeaway: make sure that you’re recording at a decent level – usually around a 4 or 5 on the scale of 10, but maybe a bit higher or lower. That’s where Audacity has it when you first install it, so you probably have it set that way now – but you should check. And be nice and close to your mic – around an inch and a half or so (three fingers) between you and the mic.

Hope this helps.

David

16 Responses to Fixing noise in soft recordings

  1. Charles Wells March 20, 2013 at 11:11 am #

    Hey David! Always love reading your stuff. I’ll make this quick.

    I noticed his “normalization” level is 0.0. Shouldn’t it be set to -3 as that’s what sites such as Voice123 require for submissions?

    Have a good one!
    Charles

    • David H. Lawrence XVII March 20, 2013 at 11:22 am #

      No, it shouldn’t. Voice123 suggests that (they don’t require it), and I suggest that they are completely and irretrievably incorrect. I’ll be putting out a 60 SECONDS on this – thanks for the question!

      David

  2. Paul Boucher March 5, 2014 at 9:17 am #

    Hi David, Thanks for this – always a good reminder to check basics.

    However, it might be good to note for newbies especially, but anyone without a ton of experience with different mics that being 3 inches from *every* mic might cause problems on its own. :-)

    Wouldn’t better advice be 3-5 inches from a good condenser mic like a Neumann, and perhaps the same on something like a 416, unless doing requiring proximity presence?

    Still “just” talent at the end of the day. ;-)

    • David H. Lawrence XVII March 5, 2014 at 9:47 am #

      Most of my students and clients are using the AT-2020 USB or USB Plus. Certainly, individual mics have different sweet spots in terms of distance and in terms of their pickup patterns – in this case, playing the 2020 two to three inches from the wire screen, on a 45 degree angle off axis, is optimal. In any case, not being too far from the mic will minimize the pickup of room noise, and getting closer will, as you describe, achieve progressively higher bass proximity effect the closer one gets.

  3. Justin S Barrett March 5, 2014 at 9:22 am #

    Great reminder, David! What is this “60 SECONDS” thing of which you speak? I haven’t heard of it before. Where/how can I find them?

  4. alkessel@me.com March 5, 2014 at 10:07 am #

    Yeah, I’m late to THIS party it seems. Anyway, I’m using Logic Pro X and can’t seem to figure out HOW to use normalization prior to editing. I’ve searched the internet and can’t really find anything on this topic…any ideas?

  5. Chris Newcomb March 5, 2014 at 5:49 pm #

    Go to preferences, advanced tab, turn everything on. Should work then.

  6. Otis Jiry March 5, 2014 at 7:21 pm #

    Hi David. I record using a M-Audio Producer USB, into a laptop running Adobe Audition 3. I set my mic input at 8 of 10, recording about 5 inches away. After recording, I process by hard limiting to -0.1, running the AA noise reduction, the bass rolloff and de-ess, plus the click and pop remover, then normalize to -3. Am I off base with this? I use this for auditions and for my YouTube short stories at Chillingtalesfordarknights.com

    • David H. Lawrence XVII March 5, 2014 at 8:05 pm #

      I wouldn’t really know – there are so many variables here. Are you suffering with high noise levels? Then I’d take a look at the whole chain. But what you’ve described sounds like you’re aware of and are paying very close attention to your tools and their settings. Good for you!

  7. Chris Newcomb March 7, 2014 at 5:37 pm #

    David, that’s in Logic X

  8. Jerry Fleishman March 8, 2014 at 1:48 pm #

    David…I use Twisted Wave. I’m not familiar with any adjustments that are available in recording volume that will similarly decrease the level of room noise when normalizing. Thoughts?

    • David H. Lawrence XVII March 8, 2014 at 1:54 pm #

      It doesn’t matter what software you’re using – it matters that the input level on that software is matched appropriately with the output level of whatever’s feeding your mic signal to the computer (mixer, bridge, the USB mic itself, etc) and that you’re not underdriving the input. As long as you’re recording at a healthy level, you’re fine. It’s when you are recording at an extremely low level that you bring up a huge noise floor when you normalize.

      Hope that helps.

  9. George Whittam March 8, 2014 at 9:09 pm #

    David’s got the right idea, it’s all about signal to noise ratio. However, the AT2020 USB can only change gain from the software, whereas other systems and USB mics have proper mic gain controls. In Windows 7 and above, be careful not to set the gain in Audacity much higher than 1 or 2 out of 10, otherwise you’ll find you have to run the gain on the mic preamp very low, which will in turn hurt the signal to noise ratio. Whenever possible the gain should be the highest at the “front end” closest to the source for best results.

    • David H. Lawrence XVII March 8, 2014 at 10:42 pm #

      Thanks for stopping by, again, George!

      I respectfully disagree about there being “proper mic gain controls” on other USB mics – other than the Yeti (please, no – I beg you), commonly used USB mics don’t have output level controls – certainly the Snowball, the Beyer-Dynamic MMX line, the Samson C01U (none of which are appropriate for VO work, but artists cheap out and buy them) and the Apogee MiC (very appropriate, but more expensive than the AT2020 USB Plus) don’t have any such control – you have to use the input control on the software (we usually refer to Audacity here, but any software will have input gain controls).

      I do agree that you have to be very careful with the newer versions of Windows (7 and above) that have added a layer of control (and therefore latency) between the hardware sound controllers and the software that runs them. It makes for a very finicky audio recording and editing environment.
